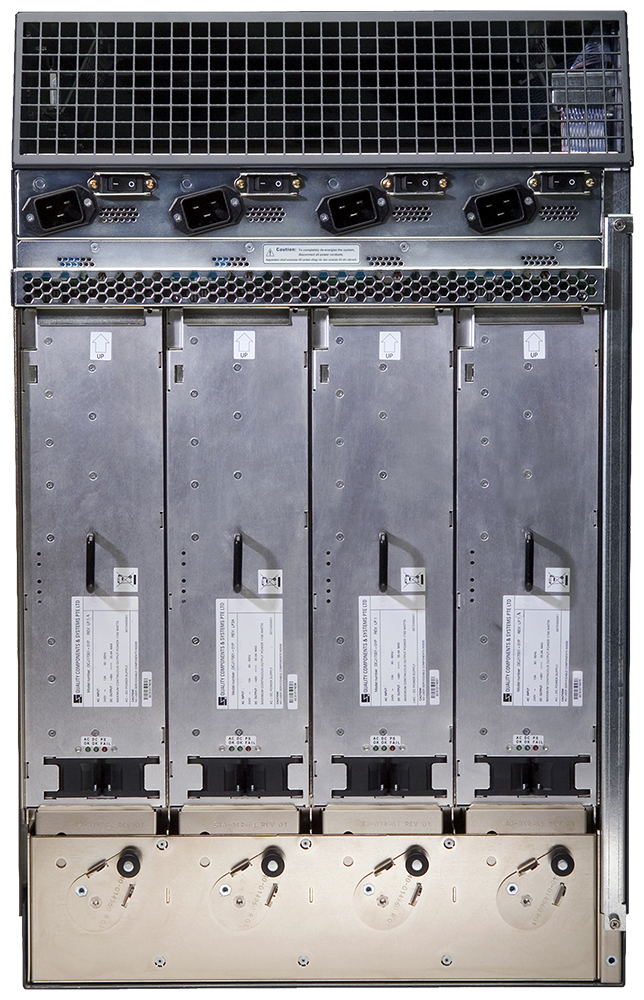

I double checked the hardware guide to ensure, and they're not fixed cable:


(If you're using the high-cap supplies there's a second input on the
PSU's themselves)

So just 8x C18-19 cables would be fine.

On 23/08/12 23:59, JA wrote:
> Hi
> I need advice if someone is having an MX960 up on AC power.
> Usually high capacity (32A) power bars (PDU) come with C13 or C19 outlets
> while Juniper has no provision for such power cords. If European power
> cords are ordered with MX960, the CEE7/7 plug can be connected to Schuko
> outlets. But there is no Schuko PDU that supports more than 16A. One can
> easily exceed 16A if two power supplies are connected on same PDU.
> Can anyone recommend some alternative or if anyone faced similar situation?
> _______________________________________________
> juniper-nsp mailing list juniper-nsp at puck.nether.net
> https://puck.nether.net/mailman/listinfo/juniper-nsp

Julien Goodwin
"Blue Sky Solutioneering"
